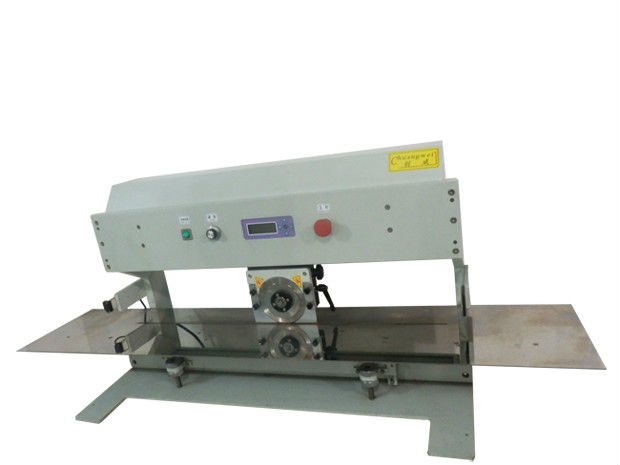

PCB Separator with 1 Circular Blade and 1 Linear Blade 600mm Cutting Length

V-CUT PCB Singulation Machine:

1. Automatic blade moving singulating type and singulate both small and large PCBs fast and economically

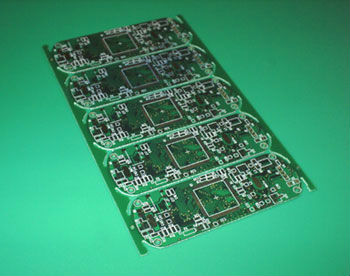

2. For various kinds substrate PCB with pre-scored V groove
3. Safety use,easy operation and easy maintanance
4. Low bending stress,no vibration

V-CUT PCB Singulation Machine Specifications:

V-CUT PCB Singulation Machine Features:

1. Firm machine structure be designed to prevent electronic circuit, solder point, and solder cutting area of PCB from damage by unsuitable force.
2. Effectively reduce stress and prevent solder point chap from PCB cutting.
3. PCB cutting speed can be adjusted by the rotary knob
4. PCB cutting stroke can be set free and setting value can be showed in LCD
5. Clearance between circular and linear blades are adjusted to fit different V groove depth and compensates for blade wear out
6. Optional PCB conveyor belt to remove finished PCB cut

[Contrast of Singulation Edge]

Smooth Singulation Edge(by CWV-1A) Coarse Singulation Edge(by hand)

[PCB Singulation Capability]

Maximum PCB Singulating Length(mm):460 or 600
Maximum PCB Singulating Thickness(mm):3.5

A:PC Board Singulating Thickness(mm):0.6~3.5
B:Minimum V-CUT Size(mm):0.25
C:PC Board V-CUT Fillister Thickness(mm):0.3~0.8

CWV-1A600:

Our service

Clients Feedback

Established in 2004, Chuangwei Electronic Equipment Manufactory is a professional manufacturer and exporter that is concerned with the design ,development and production of pcb depaneling machine, covering punching, routing, laser depaneling & v-groove cutting, hot bar soldering machine & other SMT equipments. We are located in Dongguan City with convenient transportation access.

Products are widely used in Automative electronic industry, Mobile industry, Computor industry, Power supply industry, Connector and cable industry, household appliances industry, LED lighting industry.

Covering an area of over 2000 square meters ,we now have over 45 employees,boast an annual sales figure that exceeds USD4000000 and currently export 45% of our production worldwide.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Beside,we have CE certificate for all equipments.

As a result of our high quality products and outstanding customer service ,we have gained a global sales network reaching Europe and America.

If you interested in any of our products or would like to discuss a custom order,please feel free to contact us ,We are looking forward to forming successful business relationships with new clients around the world in the near future.
