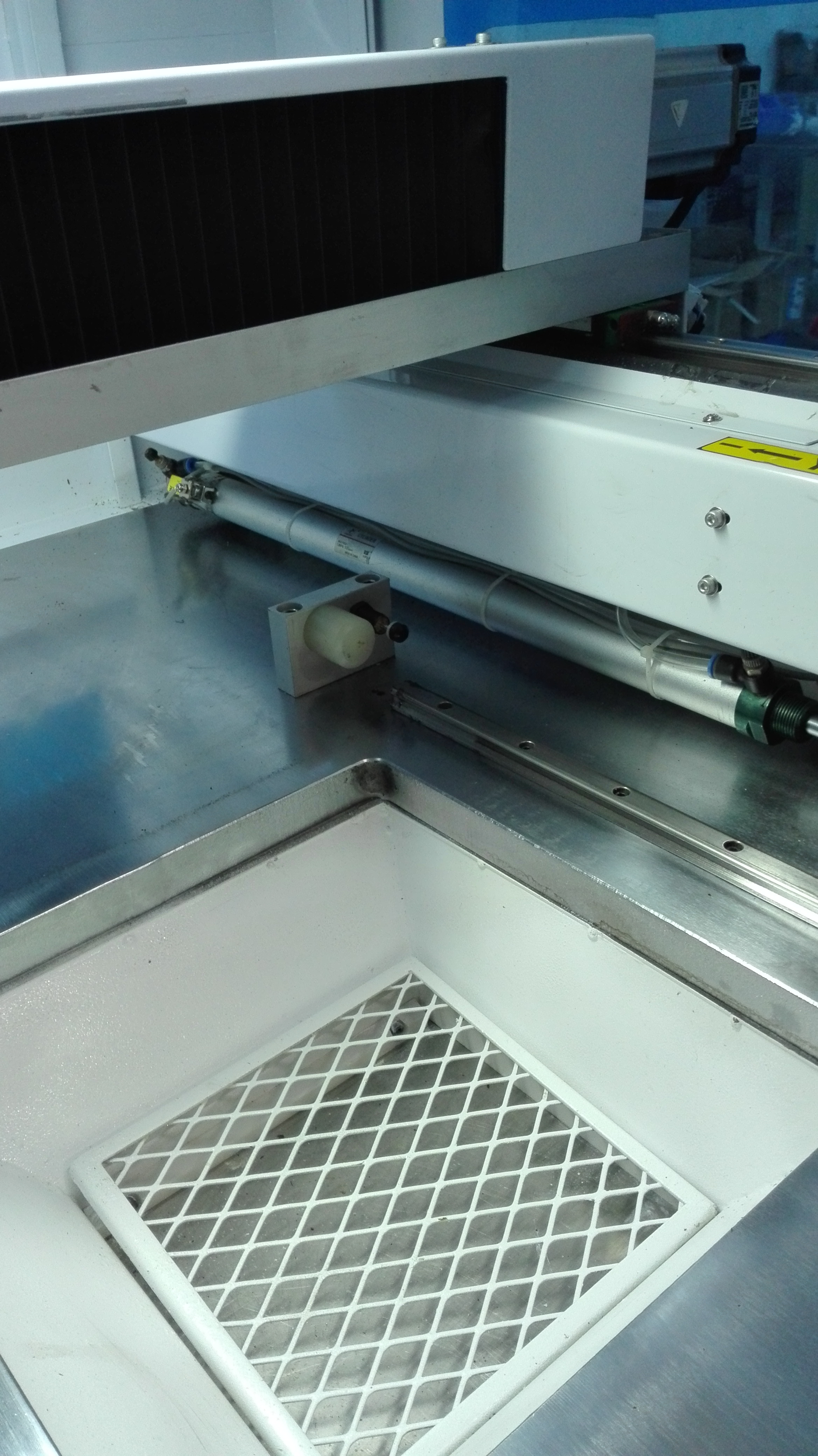

PCB Depaneling Machine PCB CNC Router for PCB Cutting with High Speed

Setting fixture 2 stations Working Area X:330mm Y:330mm Z:15mm Component Height Top side: 15mm Bottom side: 45mm PCB Thickness 0.5 ~ 2mm (It’s necessary to contact Aurotek in advance for over 2mm ) Precision of Cutting0.1mm Positioning Accuracy0.01mm Positioning Repeatability0.02mm Number of axes in use 4 (X,Y1,Y2,Z)

Driving Speed (Max.) X, Y: 1000mm/sec, Z: 750mm/sec Cutting Speed (Max.) X, Y, Z: 100mm/sec (It’s according to the specification of Bit for the best speed setting)

Spindle High speed variable frequency motor, 150W(Max. 58,000 rpm) Cutting possibilities Linear, Arc, Circular, U-curve, L-curve Motor of Axes 4 axes (200W AC Servo motors) Routing bit sectioning Max. 2 sections Route planning Direct coordinate input or manual Guiding with 10 x CCD camera Safety area sensor Standard Tool break detection Standard Operating System Windows XP Program storage HDD Program backup USB Man-machine interface TFT monitor + keyboard + mouse PCB loading/unloading Manual

Power Supply 3-Phase AC220V±5 50/60Hz [3HP Vacuum included]3kw,11A Air Dry Air 0.5Mpa Dimensions 1190x1039x1401+535 mm (signal tower) Weight 390kg Working hight 90cm±5cm

Established in 2004, Chuangwei Electronic Equipment Manufactory is a professional manufacturer and exporter that is concerned with the design ,development and production of pcb depaneling machine, covering punching, routing, laser depaneling & v-groove cutting, hot bar soldering machine & other SMT equipments. We are located in Dongguan City with convenient transportation access.

Products are widely used in Automative electronic industry, Mobile industry, Computor industry, Power supply industry, Connector and cable industry, household appliances industry, LED lighting industry.

Covering an area of over 2000 square meters ,we now have over 45 employees,boast an annual sales figure that exceeds USD4000000 and currently export 45% of our production worldwide.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Beside,we have CE certificate for all equipments.

As a result of our high quality products and outstanding customer service ,we have gained a global sales network reaching Europe and America.

If you interested in any of our products or would like to discuss a custom order,please feel free to contact us ,We are looking forward to forming successful business relationships with new clients around the world in the near future.
