PCB Cleaning Equipment 360°Rotate Jet Clean and Compressed Air Blow Dry Mode

Machine description:

CW-210 pneumatic PCB auto cleaning machine is designed to clean misprint solder paste, squeegee, feeder partgs, a small amount of PCBA. Driven by compressed air, the machine clean PCB from upper and lower side, by “one button” wasy operation, the machine complete “clean+dry” process automatically; Special pump and paten designed rotation pod guarantee stable jet pressure to make sure efficient and high qualit cleaning result.

Machine Feature:

1) Safety : Completely using compressed air as a driving force, do not use electricity, without any spark caused by security risks.
2) structure : All stainless steel structure, anti-acid corrosion, solid and durable, small size, reasonable structure, the appearance of fine.
3) Automated cleaning : According to the program set, automatically complete the cleaning, air all the processes. Small size, compact structure.
4) Spray cleaning design : The nozzle is used to increase the size of the nozzles, and the nozzle area is calculated by calculating the cleaning area.
5) operating : One-touch operation, easy to learn.
6) filter : The use of large-capacity filters, jet pressure greater, better cleaning, cleaning time less.
7) Spray room : Mirror stainless steel liner, liquid reflow with the rapid.
8)PCB dimension : maximum 450mm(L)*450mm(W)*180mm(H) . Non-calibrated control to meet the larger product size and higher cleaning capacity.
9) Applicable cleaning object :1. Misprint plate PCB surface residue ；

2.PCBA Solder on solder joints ；

3. Small batch fixture ；

4. Printing press scraper and so on.
10) Special requirements can be customized.

Machine Specification:

Machine Details:

Cleaning Flow Chart

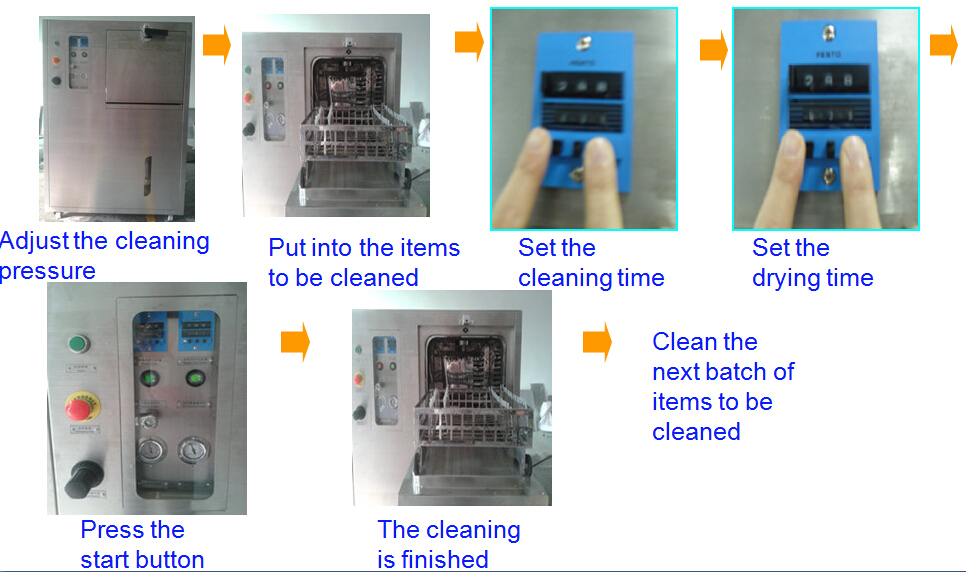

Operational Flow Chart
