Wave Solder SMT Cleaning Equipment Pallet Washer Machine with 3
Levels Filter System Machine Description:
CW-5100 cleaner is used to clean Grease, Flux, Rosin on reflow oven
cooler and filer, jig, tray. It is also used to clean parts of
hardware, print and mechanics industries.
Machine Feature:
1. Pneumatic control, no electric power requirement, 100% clean
safe.
2. SUS 304 machine wash room and frame, resit Acid and Alkali
corrosion, 10 years life time.
3. One-button mode of operation, high pressure clean + high
pressure rinse + compressed air dry, all process complete in one
time automatically.
4. Closed-loop clean and rinse, clean solvent and rinse solvent is
filtered in the machine.
5. Solvent recycled to use and cost down.
6. The fixtures are clean and dry after cleaning, standby and ready
for use.
7. Standard equipped with auto fill-in and drain-out function.
8. Labor cost save, clean efficiency raise
Machine Specification:
| Item | Parameter |
| Max fixture size | ￠1000*H460(mm) |
| Spray system | All round rotate spray clean and rinse |
| Filter system | 50/20/1um filter(3 levels) |
| Clean tank capacity | 80L |
| Rinse tank capacity | 80L |
| Spray pressure | 2-4kg |
| Air supply | 0.5-0.7Mpa |
| Machine weight | 480kgs |
| Machine size | 2100mm(L) x 1550mm(W) x 1600mm(H) |

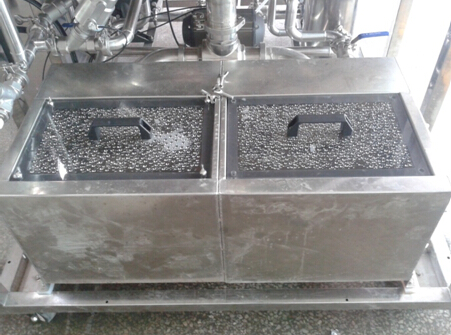

Liquid tank Cleaning tank / rinse tank:
Separate the cleaning solvent and rinse liquid, separate the piping
system, so that the cleaning fluid is always in the cleaning tank
and cleaning pipe; rinse liquid in the rinse tank and rinse pipe,
can be used for a long time without mixing
Pump Cleaning pump / rinsing pump / piping system:
1. High-quality, high-flow US famous pneumatic pump, the output
pressure, high flow, good cleaning effect
2. Equipped with liquid, drainage pipe, can be automatically added
liquid and drainage
Cleaning Effect:
