    CCD Identification Positionin Selective Laser Soldering Machine for Soldering Tin Wire

    Ask Lasest Price
    Brand Name : ChuangWei
    Model Number : CWLS-W
    Certification : CE ISO9001
    Price : Negotiable
    Supply Ability : 20sets
    Delivery Time : 15days
    • Product Details
    • Company Profile

    CCD Identification Positionin Selective Laser Soldering Machine for Soldering Tin Wire

    CCD Identification Positionin Selective Suitable Laser Soldering Machine for Soldering Tin Wire


    Product Parameter

    Feeding ModeOn board or out of orbit
    Laser parametersPower: 10-20W optional
    Wave Length: 1070± 5nm
    Mode: Continuous

    Tin Wire Specification


    Ø0.3-0.4mm
    Control ModePLC Motion+PC Image Processing
    Mechanical Repeat ability Accuracy±0.003mm
    Visual Positioning SystemCCD:5Million Pixels
    Resolution±5um
    Outline Size1250*950*1650mm
    Disk Size<110*130mm
    Host Weight550KG
    Power Waste3KW
    Power SupplySingle Phase 220V 15A
    Compressed Gas0.6MPa

    Product Features

    1.The production rhythm 3S (double track) and 5S (Dan Gui) optional, yield above 98%;

    2.The soldering efficiency is high, and the solder joint is especially suitable for mass production of multi solder joints and can be processed continuously without interruption;

    3.The degree of automation is high, the plate is in and out, and the upper and lower working stations are seamlessly connected with each other to realize highly automatic production;

    4.Completely closed structure, processing pollution-free, safe operation and use.


    Technical advantages

    1.The tin line is quantitatively and integrally formed without Tin splash and residual;

    2.The welding effect is good, the welding spot is full and the consistency is good;

    3.CCD imaging real-time observation processing;

    4.The equipment has strong expansion function and is suitable for processing many 5.kinds of complicated processing parts;

    6.The processing program can be edited and easy to operate.

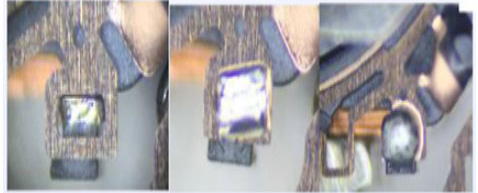

    Sample Introduction

    CCD Identification Positionin Selective Laser Soldering Machine for Soldering Tin Wire
    CCD Identification Positionin Selective Laser Soldering Machine for Soldering Tin Wire

    Application Field

    Suitable for VCM motor coil welding, flexible circuit board FPC or rigid circuit board PCB welding, high precision liquid crystal screen, LCD welding and other fields.


    Product Description

    The product will automatically enter the welding station in tray mode - through CCD identification positioning - automatic, accurate and quantitative cutting and extracting tin wire to welding position - automatic laser welding - automatic flow into next station.

    Main advantage of laser soldering technique is flexibility under precise control.

    All process parameters like energy intake, spot size and control parameters are individually matched to every soldering joint, thus achieving supreme connections even under challenging conditions.

    Laser soldering is often applied as selective laser soldering, to solder parts that are heat-sensitive, small or hard to access with conventional joining techniques ( reflow or wave soldering ).

    With more than 13 years of experience in laser technology we support your soldering application, feel free to contact us for a profound consulting on your process.
