Automated Optical Inspection AOI Equipment for PCB Assembly with
High Efficiency
Easy to operate and multiple-function AOI
Different AOI model can be placed at several quality controlling
points in SMT line such as to check 2D paste printing quality,
check component defects before reflow soldering, check PCBA quality
after reflow soldering,
and DIP after wave soldering.
1.High Speed industrial cameras &High resolution lens
Using 10 million pixels (optional 15 million pixels) high-speed
industrial cameras and high-resolution industrial lens, to ensure
the efficiency and effectiveness of image acquisition.

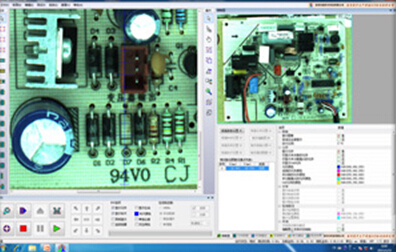

2. Graphic programming
Graphic programming, easy to programming

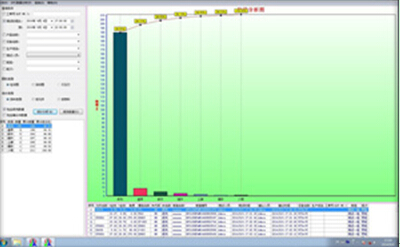

3. Visual debugging 4. SPC Analysis
5. PRODUCTS
NG display interface External bar code recognition system
NG display interface is easy to identify, external bar code
recognition system can identify the 1D & 2D bar code automatically.
6.The equipment is directly placed on the production line
The AOI machine automatic inspecting when the PCB pass through
The equipment is directly placed on the production line, the AOI
machine automatic inspecting when the PCB pass through, no need
stop the PCB and fixed position, no need adjust the speed of the
production line.

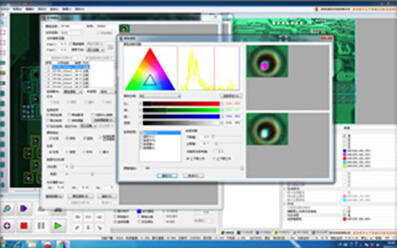

7. Recognize the polarity automatically 8.Color extract algorithm
Features:
- 10Megapixels (15MP for option) high speed Industrial camera & high
resolution lens
- Graphic programming,easy to programming
- There is a bar code reader inside,every products are storied with
the bar code information,the inspection products are traceable.
- Have SPC software.
- Real time monitoring of production line, no need stop when
inspection, the inspection is finished when the board passing,
- All production line equipment can be centralized management through
the central server,also can collect all the test data and
information of the production line, convenient for management.
- The machine can automatically recognize the board without barcode
and automatic inspect.
Specification:
| Category | Item | Specification |
| Recognition system | Inspection | The VCTA-Z1 using multiple algorithms synthetically such as
WIDM,Color Image contrast technology,Color extracting technology,
similarity, two-value handling technology and other algorithms |
| Camera | The color industrial camera(10M) made in Germany |
| Lens | Industrial lens made in Japan |
| FOV/Cycle time | The FOV needs to be adjusted according to the actual situation.
Cycle time ＜3S |
| Lamp-house | White LED Lamp-house |
| Inspection Items | Dip component wrong,missing,shift,reversed polarity(have distinct
polarity on the top side) |
| Bar code Reader | Fixed bar code recognize system, accurate identification of 1D & 2D
bar code |
| Soft system | Operation System | Microsoft Windows 7 |
| Operation | Graphic programming, take along with chip library and get an
inspection frame according with chip shape, aureate position,, and
easy programming |
| SPC | SPC report can be generated; the report can be output in Excel
format |
| Controller | Computer | Industrial computer, Intel dual Core 2, 4G MEMORY:, 500G HARDDISK |
| Display | 23 inch TFT |
| Power Supply | AC220V±10%, single phase 5A 50/60HZ, power consumption 300W |
| Working Environment | Temperature10-40℃, humidity 30-80% RH |
| Others | Dimensions | 750(L)*670(W)*1000(H) |
| Weight | 90KG |
