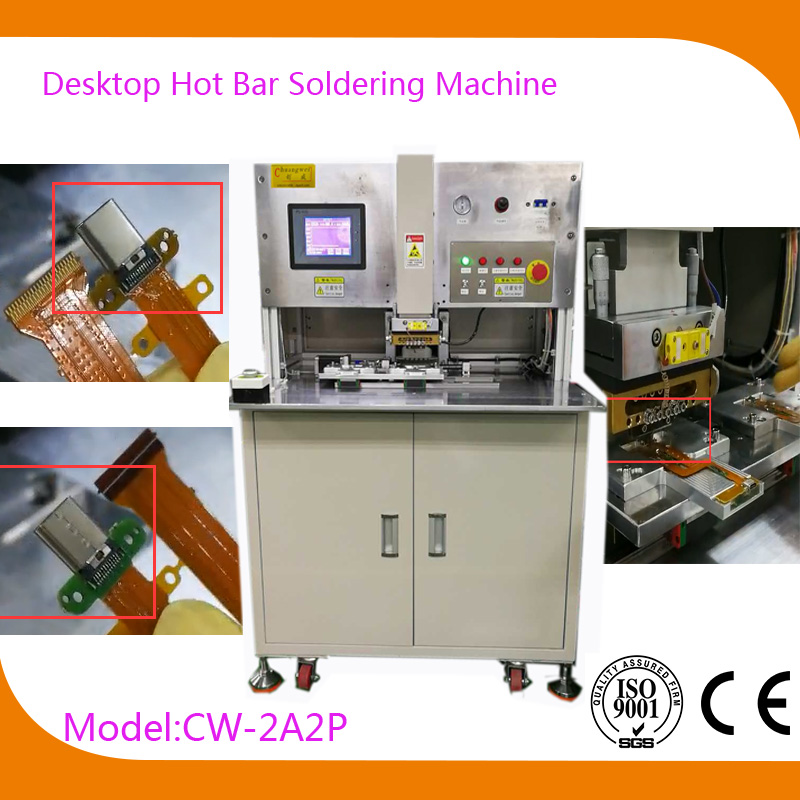

High Precision Tab HSC Hot Bar Soldering Equipment-Hot Bar
Soldering Machine introduction:
This device is designed for double - deck working mode of double
welding head. The equipment adopts high density metal material, so
the lifting temperature is fast and the service life is special.
The equipment operation is easy to understand. It is special in
welding connector and wire with single side and double sides.
Hot Bar Soldering Machine Heat Welding Machine,CW-2A2P Working
Process:
Hot Bar Soldering Machine Heat Welding Machine,CW-2A2P
Specificaiton:
Subject
| Parameters |
| Machine Size | (L)850×(W)650×(H)1320mm |
| Working Size | Max 150x150mm |
| Weight | Approx 98KG |
| Working Air Pressure | 0.5~0.80 Mpa |
| Power Supply | AC220V±10％50HZ.2000W |
| Lifting Temperature S | Five section |
| Work Environment | 10~60℃,40％~95％ |
| Welding Pressure | 4~50N |
| Welding Pressure Error | ±1N |
| Temperature Setting | RT∽500℃,±2℃ |
| Heating Rate | 250℃/s |
| Welding Time | 1-99.9S |
| Welding Precision | Pitch 0.2mm |
| Welding Head Size(M metal) | Max 50*3mm |
| Welding Head Size(T metal) | Max 100*3mm |
| Welding Head Flatness | ±0.02mm |
| Pin Distance Range | ＞0.2mm |
| Alignment Mode | Artificial Alignment |
| Positioning Fixture | 2 |
| Way of Discharge | Artificial pick and Place |
| Start Mode | Pressed by Hands |
| Heating Method | Pulse heating, the rise time is 1 ~ 2S |
| Work Stage | Left and Right Automatic Push and Pull |
| Platform Control | Precision Motor Control,Error <0.02mm |
Hot Bar Soldering Machine Heat Welding Machine,CW-2A2P Features:
Customized based on the connector;
Double jig welding;
Double- desk working mode;
Can achieve ultra-fine pitch welding;
Applicable to welding the cable and connection of communicating
machine.

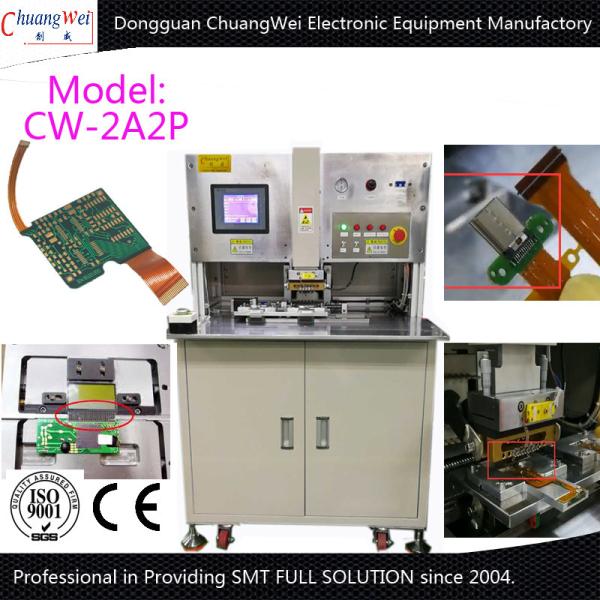

Hot Bar Soldering Machine Heat Welding Machine with CE,CW-2A2P
