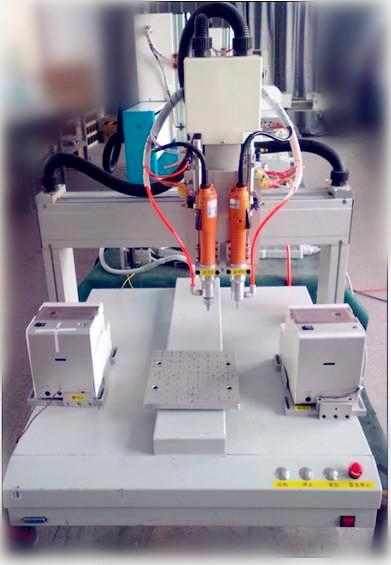

Benchtop Screw Tightening Machine Single Station Adsorption DSP Control

Ask Lasest Price
Brand Name :	Chuangwei
Model Number :	CWSM-01
Certification :	CE ISO
Payment Terms :	T/T, L/C
Supply Ability :	300 sets per month
Delivery Time :	1-3 days after payment confirm
Price :	Negotiable

Add to Cart

Product Details
Company Profile

Benchtop Screw Tightening Machine Single Station Adsorption DSP Control

Benchtop Screw Tightening Machine WithSingle Station Adsorption DSP Ccontrol

Features:

*Strong suction mouth, to ensure that suck up the screw;

*Operate dependently, convenient installation, simple operation;

*Quickly rule out the screw failure, continue to work directly in the original error point;

*High precision of electric screwdriver, can control the torque, stable and reliable;

*Replace the manual for specific operation, reduce labor intensity, improve production

efficiency;

*Screw lock manager with the display alarm function of screw unlock, machine idling

and torque error;

Specifications

Automatic Screw Tightening Machine

1. DSP control
2. High precision
3. Convenient installation
4. Simple operation

Description:

Product name	Professional Desktop Automatic Screw Tightening Machine
Model	CWSM-6
Voltage	220v
Power	150w
Weight	50kg
Dimension	620660770mm
Machine travel X/Y/Z/R	50050080mm
Repeat accuracy	0.002mm
Analytical ability	0.001mm
Max torque	500
File storage capacity	At least 1000 groups, each of 9999 bytes
File storage	Memory store
Control mode	DSP control
Programming	Handheld teaching programmer
Working environment temperature	10-50℃
Screw bag volume	10000 PCS
Screw into way	Adsorption type
Custom processing	Yes

Application:

*Applied to mobile phone, digital products, small electronic equipment, small house

hold electrical appliances;

*Applicable to the vast majority of screw, especially stainless steel screws, strong

versatility, has no requirement on the screw length diameter ratio;

Advantages:

1. High efficiency: multiple axis lock at the same time, 10 screws can be locked in one screw’s period, saving lots of artificial, suitable for mass production.

2. High fastening standard: all screws are locked in one torque at the same time, making sure of the sealing and balance of the product, greatly increase the qualified rate of products.

3. Deep hole locking: the fastening of deep hole screw has inconvenience in observing the hole site, so artificial locking has low efficiency, while multi-axis screw locking machine locates and fastens screws accurately.

characteristic

1, Reduce cost:Locking two kinds of screws at the same time ,the staff can operate quickly ,improve the efficiency

2, efficiency: Fastening two kinds of screws at the same time,higher efficiency ,3600-4000pcs screw per hour. no waiting

3, More relax: single equipment for single worker, Just finished loading

4, Reliability:,Automatic alarm system, work 20 hours more

5, Generality: Touch screen display programmable achieve more operations,Through a simple programming, can be put into production, convenient for production and management

Applicable subject:

Mobile phones, car electronic products, household appliances, power supply, instrument equipment, LED, computer keyboards, PAD, toys and so on.

Why us

1. Engineers available to service machinery oversea.

Engineers are available to be sent to freign countries to do machinery training and offer technical support

2. Mature technique & forerunner to process makes high quality machinery.

As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router

Our R&D team continuously upgrade the existing machines to meet the market development trend.

3. One year warranty for the machines except accessories.

Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge

4. Effective customer service.

All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

Our mission

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success

Our Vision:

Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success

Production flow

CE approval
