    4*2 KHz 220V 50Hz Hot Bar Soldering Machine Heating Up And Cooling Down

    Ask Lasest Price
    Brand Name : Chuangwei
    Model Number : CWPDY2IN
    Certification : CE ISO
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 300 per month
    Delivery Time : 1-3 days after payment receive
    Price : Negotiable
    • Product Details
    • Company Profile

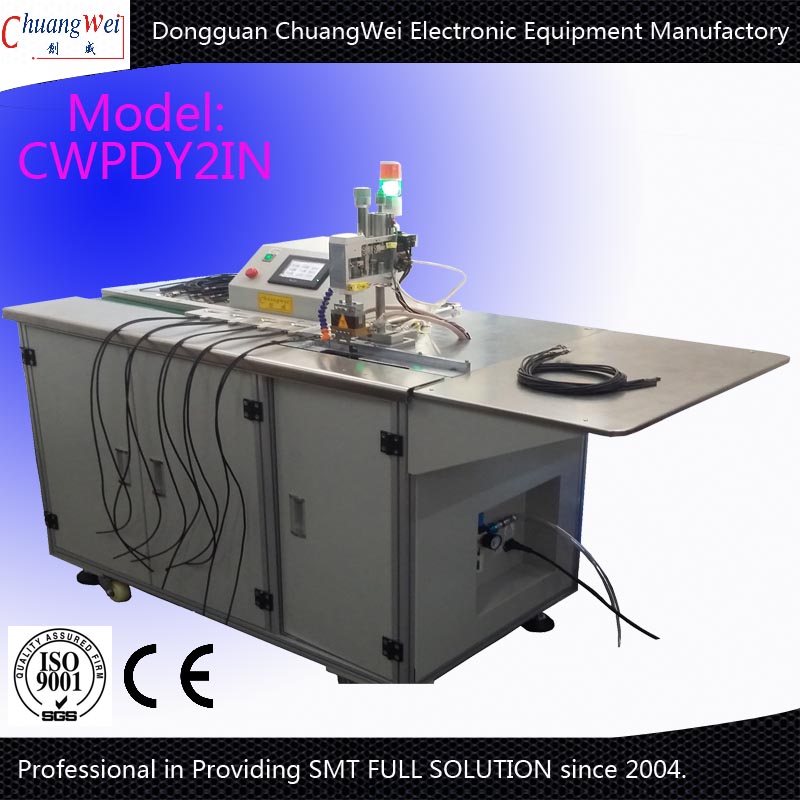

    4*2 KHz 220V 50Hz Hot Bar Soldering Machine Heating Up And Cooling Down


    Hot Bar Soldering Machine Simultaneously Soldering Double Sides



    Technical Parameters


    Model:CWPDY2INPower:6*2 KW
    Power Supply:220V 50HzInverter frequency: 4*2 KHz
    Load sustained rate: 20%Heating up and cooling down: Yes
    Temp. range: 50-600℃Cooling mode: Air
    Max product size:80mmPressure range:10-50N
    Temp. Control Precision:±3%Thermocouple: E or K optional
    Thermode head size: 5-50mmWeight:200kgs
    Dimension:1600*700*1300mm

    Features:


    1. On-line conveyor loading and landing automatically


    2. Has alarm system, manual test & adjustment is available


    3. Double side soldering at the same time


    4. LCD display for soldering temp.


    5. Advanced temp. controlling system, high precision temp & soldering
    time controlling


    6. Stable temp. profit, high frequency inverter frequency, short power
    cycle.


    7. Closed loop PID temperature control with visible LED display



    8. Three section of heating setting, the temperature rises quickly and
    steadily


    9. 20 groups of programs can be stored, using RRPROM to prevent data
    from missing
