PCB/LCD Hot Bar Soldering Machine/Pulse Heat Hot Bar Bonding Equiqment

Description:

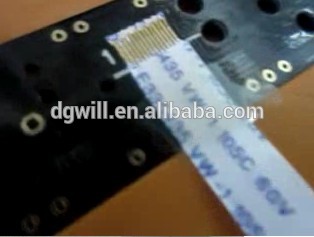

Hot bar soldering is extremely effective in bonding components and parts that are dissimilar and difficult to unite. Several examples are listed above, but there are many other soldering situations that call hot bar reflow soldering system. This technology, also known as pulse bonding, differs from traditional soldering since the reflow process uses thermode technology, which is based on rapid reflow by pulse heating. This procedure allows materials with low temperature resistance to be soldered at high lead-free temperatures without damage to the flex. It selectively solders parts by heating them to a temperature that's high enough to cause their adhesive or solder to melt and then re-solidify to form a permanent bond.

Specifications for Soldering Machine:

Data lines Link welding machine
1. Accurate Tin press,not drag
2. Accurate heat
3. Fine-pitch positioning
4. Precision

Technology Parameters:

Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)

2. Mold make of SKD-11 Steel,Blade is SKD-9(From Japan),Rigorous Job

Technical Characteristics:
1. Structural precision, the load evenly, to eliminate internal stress

2. Safe, easy to operate

3. Electronic component won't short circuit

Features for Soldering Machine:

1. Closed Loop PID temperature control with visible LED display
2. LCD display programmable pressure switch for precise force control
3. Each heating cycle is triggered by a real time pressure sensor
4. Floating thermode ensures consistent pressure and heat transfer
between the thermode head and the parts to be joined
5. Silicon rubber can be fitted in bonding Heat Seal Connectors
between LCD and PCB
6. Standard workpiece holder is mounted on a linear guideway and
designed to allow for easy changeover and repeatable operation
7. Parts registration is adjusted by micrometer and secured by vacuum
lock
8. Optional CCD system for fine pitch component

1. Engineer overseas tranning for customers

2. Promise day technical support services

3. Limit the handling of complaints, half an hour back to customers

4. Reliable machine maker,we get Experts--15,each one got over six years experience,equipment quality will be satisfying.

CE Certification:

Our Clients:

If you need more machine, please click http://www.pcbseparator.com. Have fun purchasing!

Established in 2004, Chuangwei Electronic Equipment Manufactory is a professional manufacturer and exporter that is concerned with the design ,development and production of pcb depaneling machine, covering punching, routing, laser depaneling & v-groove cutting, hot bar soldering machine & other SMT equipments. We are located in Dongguan City with convenient transportation access.

Products are widely used in Automative electronic industry, Mobile industry, Computor industry, Power supply industry, Connector and cable industry, household appliances industry, LED lighting industry.

Covering an area of over 2000 square meters ,we now have over 45 employees,boast an annual sales figure that exceeds USD4000000 and currently export 45% of our production worldwide.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Beside,we have CE certificate for all equipments.

As a result of our high quality products and outstanding customer service ,we have gained a global sales network reaching Europe and America.

If you interested in any of our products or would like to discuss a custom order,please feel free to contact us ,We are looking forward to forming successful business relationships with new clients around the world in the near future.
