Linear / Round Blades Manual PCB Separator to Separate PCB

Ask Lasest Price
Brand Name :	Chuangwei
Model Number :	CWV-1M
Certification :	CE ISO
Payment Terms :	T/T, L/C,paypal
Supply Ability :	300 sets per month
Delivery Time :	1-3 days after payment receipt
Price :	Negotiable

Add to Cart

Product Details
Company Profile

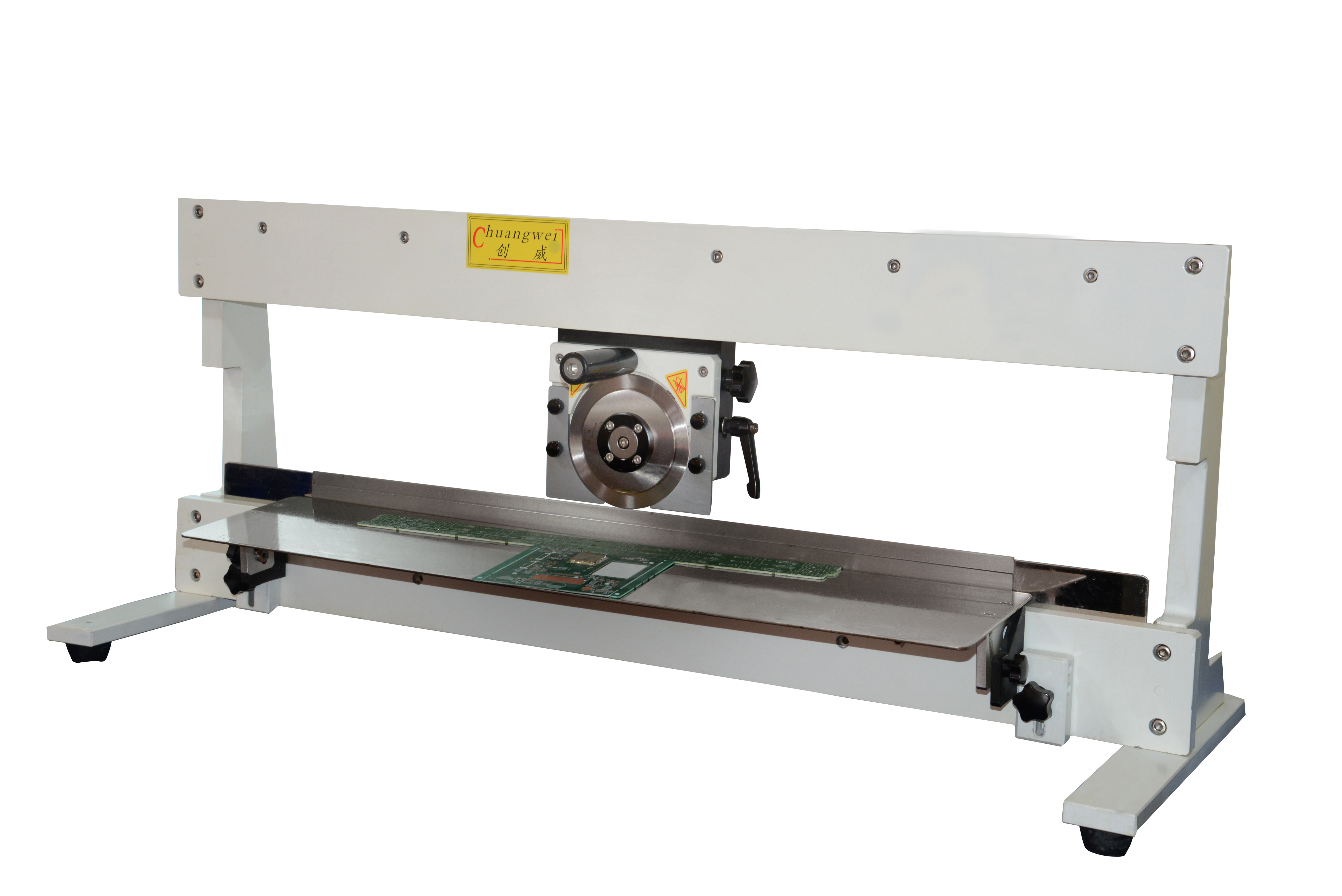

Linear / Round Blades Manual PCB Separator to Separate PCB

Linear / Round Blades Manual PCB Separator To Separating PCB

v-cut pcb separator CWV-1M Feature:

1. Round knife, manually cutting against lower linear knife, for reduced stress
2. Separate pre-scored PCB assembly without stress on either PCB or component
3. One touch programming of cut length with digital display
4. Separating speed is adjusted by a rotary knob
5. Handle Intermittent scoring or cut-outs
6. Board with projected component can be cut precisely
7. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
8. Optional PCB conveyor belt to remove finished board
9. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out

Specification

Model	CWV-1M460
Max. PCB singulation length	460mm
PCB singulation Thickness	0.6-3.5mm
PCB singulation speed control	by hand
PCB singulation machine size	787x400x436mm
PCB singulation machine weight	30Kg

Model	CWV-1M720
Max. PCB singulation length	720mm
PCB singulation thickness	0.6-3.5mm
PCB singulation speed control	by hand
PCB singulation machine size	1027x400x436mm
PCB singulation machine weight	45kg
