50hz Industrial Robotic Automatic Screwdriver Machine XYZ Axis
Features :auto feed screwdriver
1 , Auto-intelligent detection for screw loose , screw missing
,screw unstable .K576
2 , Automatic feeding and lock screws , Any screw hole point and
location data can
be stored in the system at any time .auto feed screwdriver
3 , Excellent commonality and easy replace Screw M 2.0—M 5.0
4 , Using X , Y , Z axis operation movement system control .
Technical Parameters :
Machine size : 500 * 620 * 630 ( L * W * H )
Screwing range : 200 * 390 * 70mm ( X * Y * Z )
Drive mode : 4-axis precision stepper drive
Positioning accuracy : ± 0.02mm
Control system : PLC + touch screen control system
Screw delivery method : draw style
Screw feeding quantity :1 -2 group
Screw delivery method : Teach-
Efficiency : Min <1.5s
Program storage capacity : 100 groups , 100 points / group
Communication port : USB
Power supply : 220VAC , 50HZ
Air source : 0.4Mpa
Total Weight : 60kg
Advantages
- One machine can reduce 30% human power , you can reduce two
screwing workers .
- can be set through the touch screen coordinate value and the
product of the screw , can be applied to a variety of common
products . If the screw on the product specification is basically
the same , you only need to replace the fixtures they can use the
product , the entire process is completed in less than 10 minutes .
- monitor the entire quality of the equipment lock screw , in the
event of bad touch will alarm and display the type of defective
products .
- Automatic clutch after the screwdriver reach the torque , ensure
that each lock screws Vice torque control ± 10%.
- main parts are die steel production , abrasion resistant plastic
deformation , equipment, body spray paint , oil and scratch
resistant .
- humane touch -screen operation and ease of operation , external
technical parameters and manual test function can be directly
adjusted by technicians.
- The machine are small, save production line pace , easy moving .

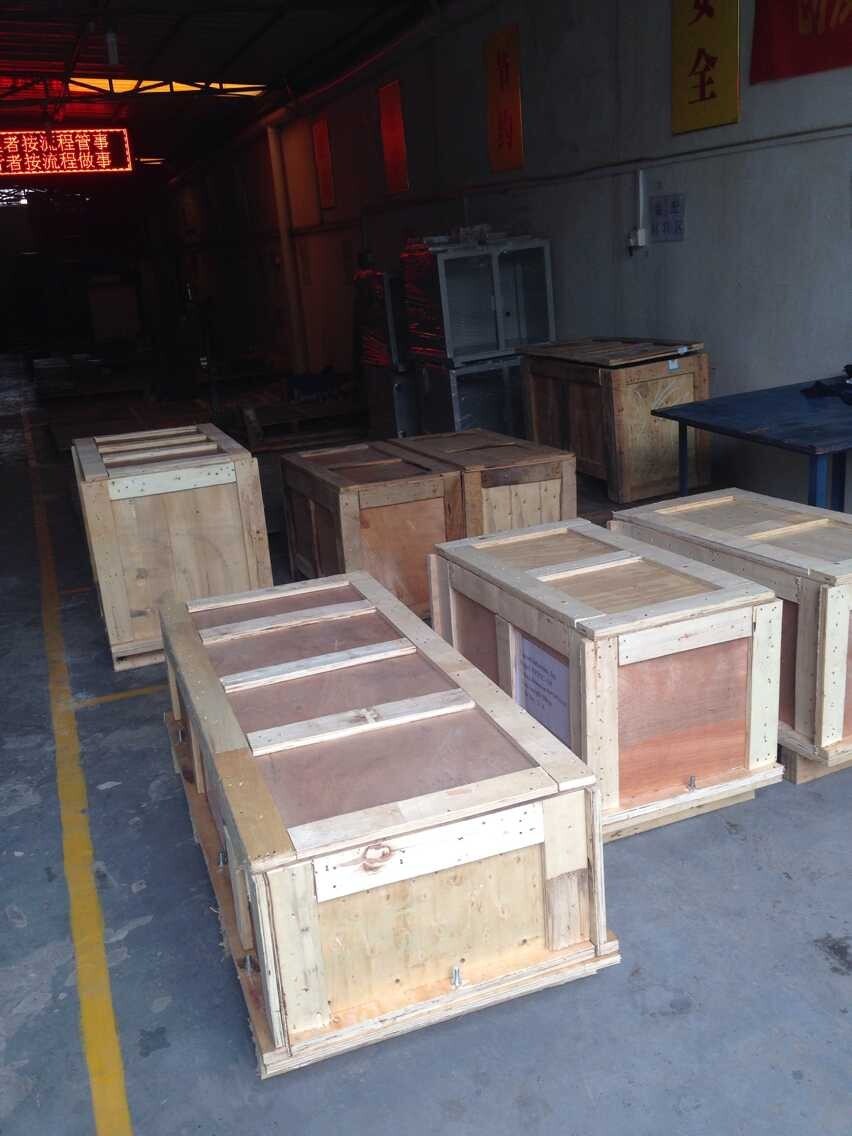

Package : plywood case ,
