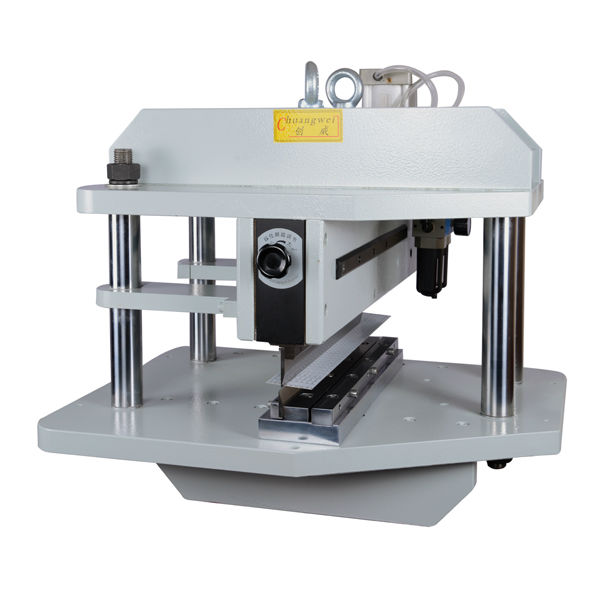

LED Board PCB Separator with Aluminium,PCB V-score Cutting Machine
1.Nice for separating v cut metal board,Aluminium PCB,LED
strip,Copper PCB etc.
2.Separate rigid and thick board fluently.
3.Use pneumatic-driven and electromagnetic valve to operate.
Features:
1.New style rigid machine structure design,separate any length
rigid and thick metal board more safely and easily.
2.Separate long boards directly,without turning PCB direction.
3.Separating process without vibrations due to pneumatic drive
unit.
4.Separating PCB without bending and tension stress.
5.PCB control operation is that operator stamps the foot pedal to
separate PCB.
6.Highest components near the v groove of PCB can be up to 50mm.
7.Gap for insertion of PCB can be easy to adjust.
Specifications:
| Model | CWVC-450 |
| Linear Blades length | 450mm(Can custom made) |
| Material of blades | high speed steel |
| Max.PCB separating length | unlimted |
| PCB separating thickness | 0.3-3.5mm |
| Voltage and Power | 110V/220V -- 10W |
| Working air pressure | 0.5-0.7Mpa |
| PCB separating speed | due to operator skilled level |
| PCB separator machine size | 900*760*750 |
| PCB separator machine weight | 475kg |
Chuangwei PCB separator machine
***From 2004 we started to development,manufacture,sale,service for
PCB separator machine, until now,we have produced different kind
PCB separator machine type for
manual,motor-driven,pneumatic-driven,mold and die punching,milling
cutter router etc.
***You can depend on your company's condition and choose the most
suitable one.
***Also We can manufacture PCB separator machine base your actual
requires.
***PCB separator machine mainly applies to separate various
shape,length and thickness Printed Circuit Board(PCB) which include
Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example
electronic and digital products FR4 PCB,FR6 PCB ,Aluminium PCB,
Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different
FPC etc.
***Any interest please contact us freely.
Chuangwei PCB separator machine
