Manual PCB cutting machine , PCB Depanelizer V-cutting Machine pcb

1. PCB cutting process by hand push
2. Safety use and easy operation
3. The price is very economical

4. Cutting speed is controlled by operator

Feature:

1. Easy to operate, keep moving by lower knife to improve cutting effects

2. Height of lower knife adjustable, suitable for different thickness of PCB

3. Blades are re-sharpable,Speed control by manual

4. Frame is made of high quality steel

5. Lower internal stress to prevent damage of PCB

6. Gap for insertion of the board can simply be adjusted by means of the adjusting knob

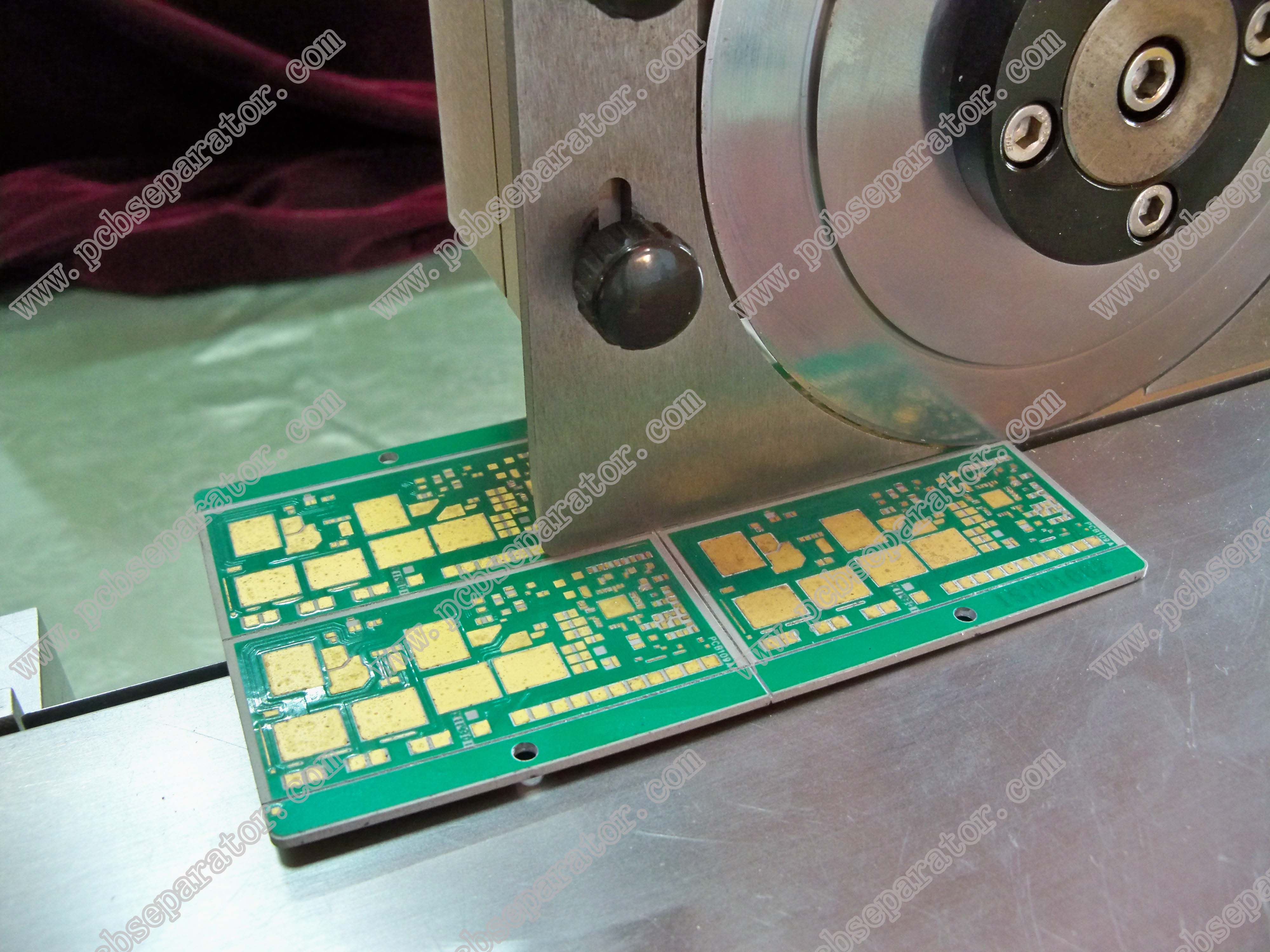

V-CUT PCB cutting machine features:
1.Use upper circular blade and bottom linear blade.
2.Cut pre-scored v groove PCB without stress on either PCB or component.
3.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.
4.Blades can be re-grinded to use.

Application:

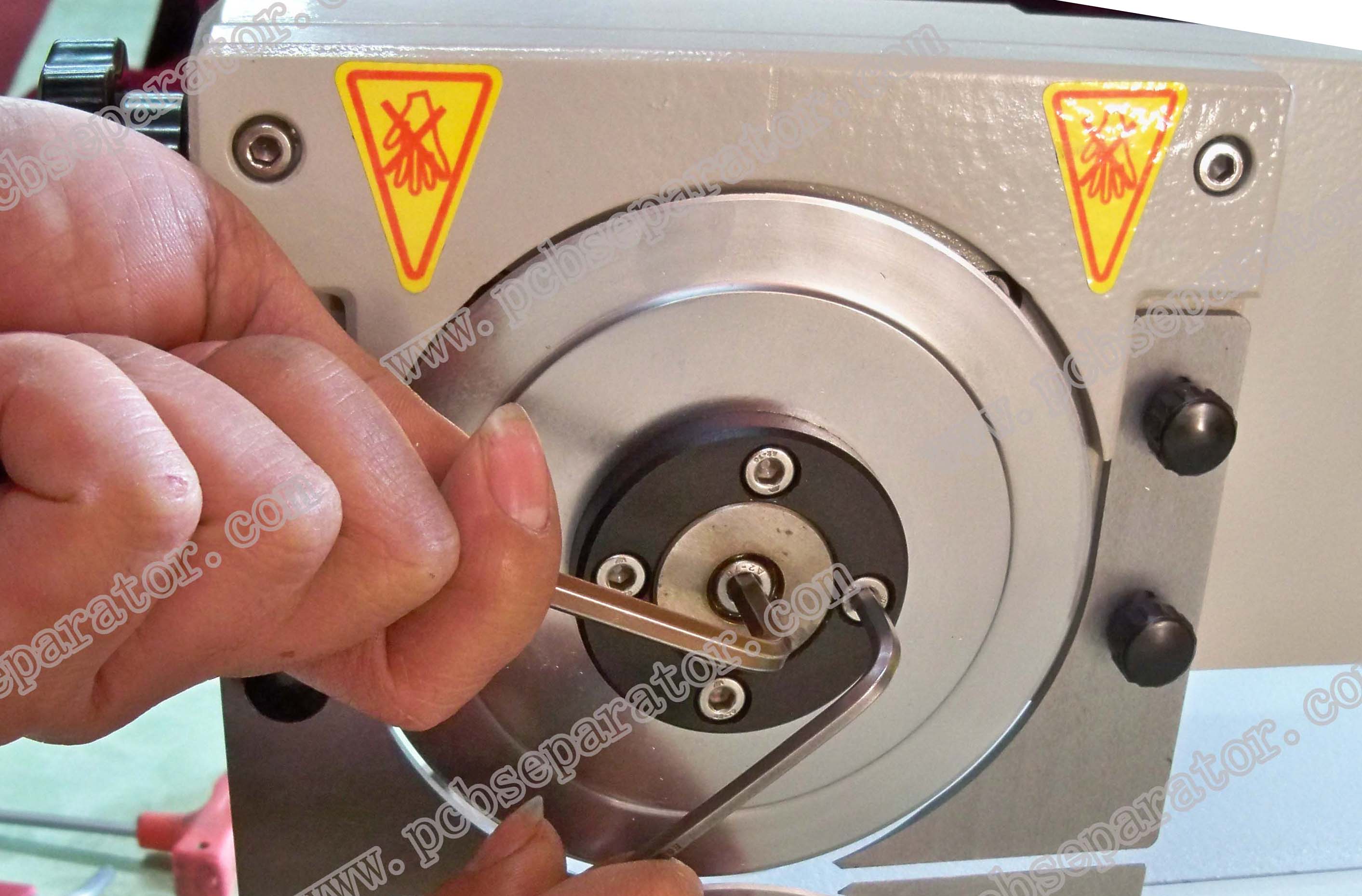

Replacement of uppler blade:

1.Place the Allen Key in the screw

2.Then remove the four screws (Refer to Below picture) with the Allen key

3.Remove circular blade, and replace with a new circular blade

Established in 2004, Chuangwei Electronic Equipment Manufactory is a professional manufacturer and exporter that is concerned with the design ,development and production of pcb depaneling machine, covering punching, routing, laser depaneling & v-groove cutting, hot bar soldering machine & other SMT equipments. We are located in Dongguan City with convenient transportation access.

Products are widely used in Automative electronic industry, Mobile industry, Computor industry, Power supply industry, Connector and cable industry, household appliances industry, LED lighting industry.

Covering an area of over 2000 square meters ,we now have over 45 employees,boast an annual sales figure that exceeds USD4000000 and currently export 45% of our production worldwide.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Beside,we have CE certificate for all equipments.

As a result of our high quality products and outstanding customer service ,we have gained a global sales network reaching Europe and America.

If you interested in any of our products or would like to discuss a custom order,please feel free to contact us ,We are looking forward to forming successful business relationships with new clients around the world in the near future.
