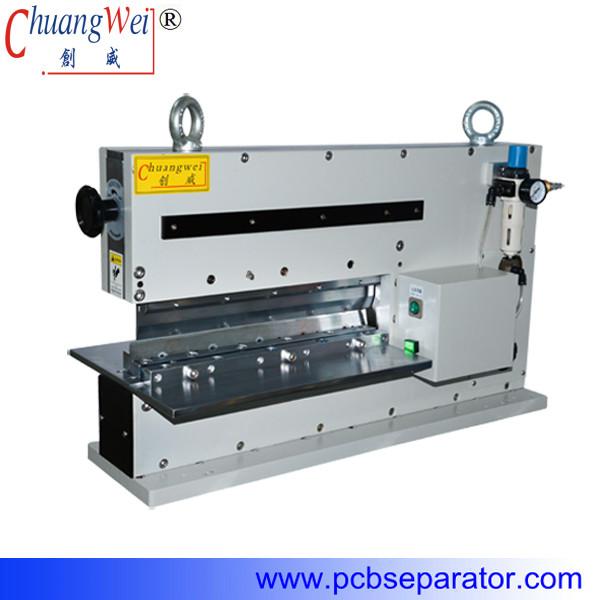

    Aluminum Pre-scored Panel Singulation Machine,CWVC-2L

    Ask Lasest Price
    Brand Name : ChuangWei
    Certification : CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
    Model Number : CWPE
    Delivery Time : within 7 days after receipt the payment.
    Payment Terms : T/T ,L/C
    Supply Ability : 800 sets/year
    • Product Details
    • Company Profile

    Aluminum Pre-scored Panel Singulation Machine,CWVC-2L


    cw logo v cut pcb separator,pcb depanelizer,pcb cutting machine, pcbfpc punching machine.jpg

    The most professional PCB depaneling machine manufacturer in China.


    ***V CUT PCB depaneling machine***
    1.Easy maintenance and operation
    2.Thin PCB even to 0.3mm can be depaneled safely
    3.Depaneling process without vibrations due to pneumatic drive unit


    ***V CUT PCB depaneling machine specifications***

    ModelCWVC-2L
    Max. PCB depaneling length330mm(Can custom made)
    PCB depaneling thickness0.3-3.5mm
    Voltage and Power110V/220V 10W
    Working air pressure0.5-0.7Mpa
    PCB depaneling speeddue to operator skilled level
    PCB depaneling machine size620*230*400mm
    PCB depaneling machine weight165kg


    ***V CUT PCB depaneling machine features***
    1.Pneumatically driven and electromagnetic valve control.
    2.Depaneling process without vibrations due to pneumatic drive unit .
    3.Depaneling PCBs with sensitive SMD, capacitors or thin board even to 0.3mm can be depaneled safely.
    4.Depaneling operation is that operator stamps the foot pedal to Depanel PCB.
    5.Highest components near the v groove of PCB can be up to 70mm.
    6.The minimum distance is allowed to be 0.5mm between V groove and the electronic components.
    7.Gap for insertion of PCB can be easy to adjust by the adjusting knob in front of the machine.


    ***V CUT PCB depaneling machine operation video please see below: (CWVC-2L)***
    http://www.youtube.com/watch?v=zuFZH9KcxZs
    http://www.youtube.com/watch?v=PWOYDPsJiUY
    http://v.youku.com/v_show/id_XNTk2NzgxNDEy.html
    http://v.youku.com/v_show/id_XNTk2NzU4NzA4.html


    ***Chuangwei PCB depaneling machine***
    ***From 2004 we started to development,manufacture,sale,service for PCB depaneling machine, until now,we have produced different kind PCB depaneling machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.
    ***You can depend on your company's condition and choose the most suitable one.
    ***Also We can manufacture PCB depaneling machine base your actual requires.
    ***PCB depaneling machine mainly applies to depanel various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
    ***Any interest please contact us freely.

    ***Chuangwei PCB depaneling machine***


    CWVC-2L 11 v-cut PCB separator,PCB depaneling machine,PCB cutting machine,pcb depanelizer.jpg

    CWVC-2L b v-cut PCB separator,PCB depaneling machine,PCB Depanelizer,PCB cutting machine.jpg


    CWVC-2L a v-cut PCB separator,PCB depaneling machine,PCB Depanelizer,PCB cutting machine.jpg




    Seaworthy plywood case,safe, no need to fumigated (free):
    cwvc-2L v-cut PCB separator,PCB depaneling machine,PCB Depanelizer,PCB cutting machine.jpg

    Chuangwei PCB depaneling machine list:

    List pro- cw pcb separator machine,PCB depaneling machine,pcb cutting machine list.jpg




    Chuangwei PCB depaneling machine CE Certificate:
    CERTIFICATE OF pcb depaneling-CE.jpg



    ***Any interest please contact us freely.


    ***Chuangwei PCB depaneling machine***


    **********************
