Manual PCB Depanelizer , Pneumatically PCB Depaneling Machine

Quick Detail:

1.The price is very economical
2.Easy maintanance and operation
3.Low bending stress,no vibration

Descriptions:

1.Depanelization type:upper component side(circular blade),bottom solder side(linear blade).
2.Depanelization for small and large PCB with pre-scored V groove.
3.Depaneling pre-scored V groove PCB assembly without stress on either PCB or component.
4.Depaneling speed is controlled by hand and very easy operation.
5.Large stainless steel platform on both side of cutting blade prevents PCB shaking and the table height and angle could be adjustable.
6.The PCB is placed with its pre-scored V groove onto the linear blade and the circular blade is then drawn by hand across the PCB.
7.Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.It is to ensure that the PCB is only depaneled in the pre-scored V groove.

Specifications:

Chuangwei PCB depanelizer machine

***From 2004 we started to development,manufacture,sale,service for PCB depanelizer machine, until now,we have produced different kind PCB depanelizer machine type for manual,motor-driven,pneumatic-driven,mold and die punching,milling cutter router etc.
***You can depend on your company's condition and choose the most suitable one.
***Also We can manufacture PCB depanelizer machine base your actual requires.
***PCB depanelizer machine mainly applies to depanel various shape,length and thickness Printed Circuit Board(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital products FR4 PCB,FR6 PCB ,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and different FPC etc.
***Any interest please contact us freely.

Chuangwei PCB depanelizer machine

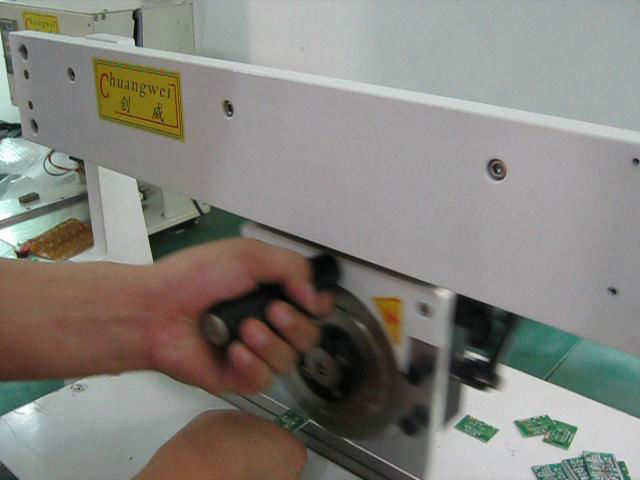

Manual V-CUT PCB depanelizer machine operation:

ChuangWei more related PCB depanelizer machine:

Chuangwei PCB depanelizer machine CE Certificate:

Established in 2004, Chuangwei Electronic Equipment Manufactory is a professional manufacturer and exporter that is concerned with the design ,development and production of pcb depaneling machine, covering punching, routing, laser depaneling & v-groove cutting, hot bar soldering machine & other SMT equipments. We are located in Dongguan City with convenient transportation access.

Products are widely used in Automative electronic industry, Mobile industry, Computor industry, Power supply industry, Connector and cable industry, household appliances industry, LED lighting industry.

Covering an area of over 2000 square meters ,we now have over 45 employees,boast an annual sales figure that exceeds USD4000000 and currently export 45% of our production worldwide.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Beside,we have CE certificate for all equipments.

As a result of our high quality products and outstanding customer service ,we have gained a global sales network reaching Europe and America.

If you interested in any of our products or would like to discuss a custom order,please feel free to contact us ,We are looking forward to forming successful business relationships with new clients around the world in the near future.
