High Accuracy Dispensing Conformal Coating Machine for Electronic Assembly

Features:
1.X, Y, Z three-axis motion
2.Servo motor+ball screw drive
3.Independent material container
4.Equip with gas collection, exhausting devices
5.SMEMA port to connect with other devices
6.Integral steel moving platform, to ensure the smooth running
7.Run precision of 0.02mm,automatically eliminate difference
8.Nozzles automatic cleaning device
9.Special aluminum alloy rail and stainless steel conveyor chain
10.Motion controller use computer+,WINDOWS operating system, failure alarming menu
11.Available by manual teaching programming which is easy and quick

Technical parameter

Nozzle option and function:

	Tilt for coating	Tilt for dispensing
Can equipped with 2 sets of nozzle. It can choose 3 from 5 that SA-W5, SA-W3,DJ-01, LA-W30, SC-W10 2 of them can be 35° tilt to achieve 5 axis working. The nozzle can down 75mm, and 3 nozzles can switch crbitrarily. The whole holder can be 360° rotation which can make high efficiency accuracy no-deadcorner.	Big area coating	Components fixing, Dam protecting, Dot seal glue

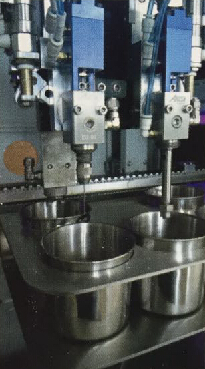

	Automatic purging when waiting	Automatic solbent after purging

Application:
PCBA surface coating, dam process, coating solder mask, DIP components fixing.

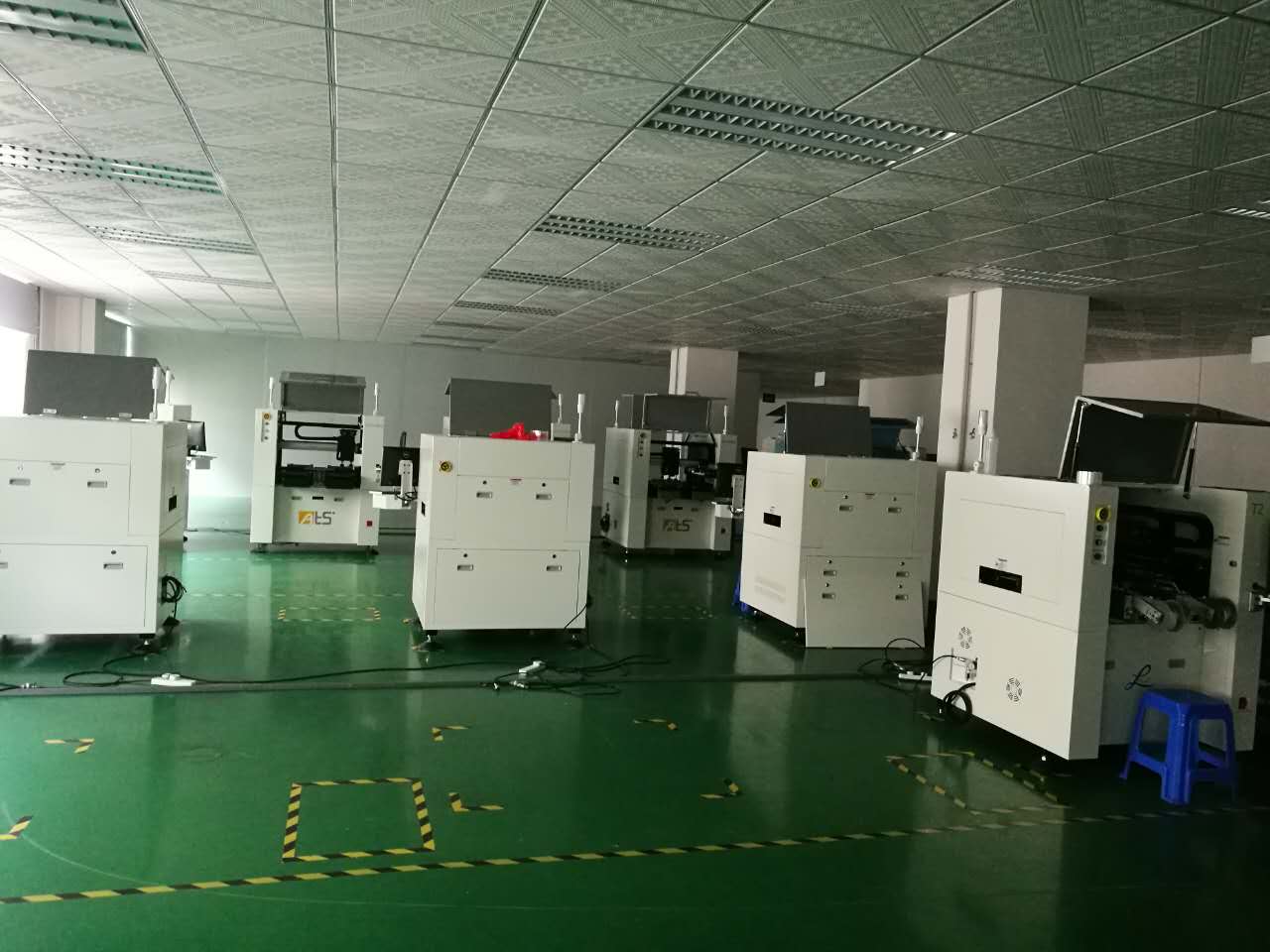

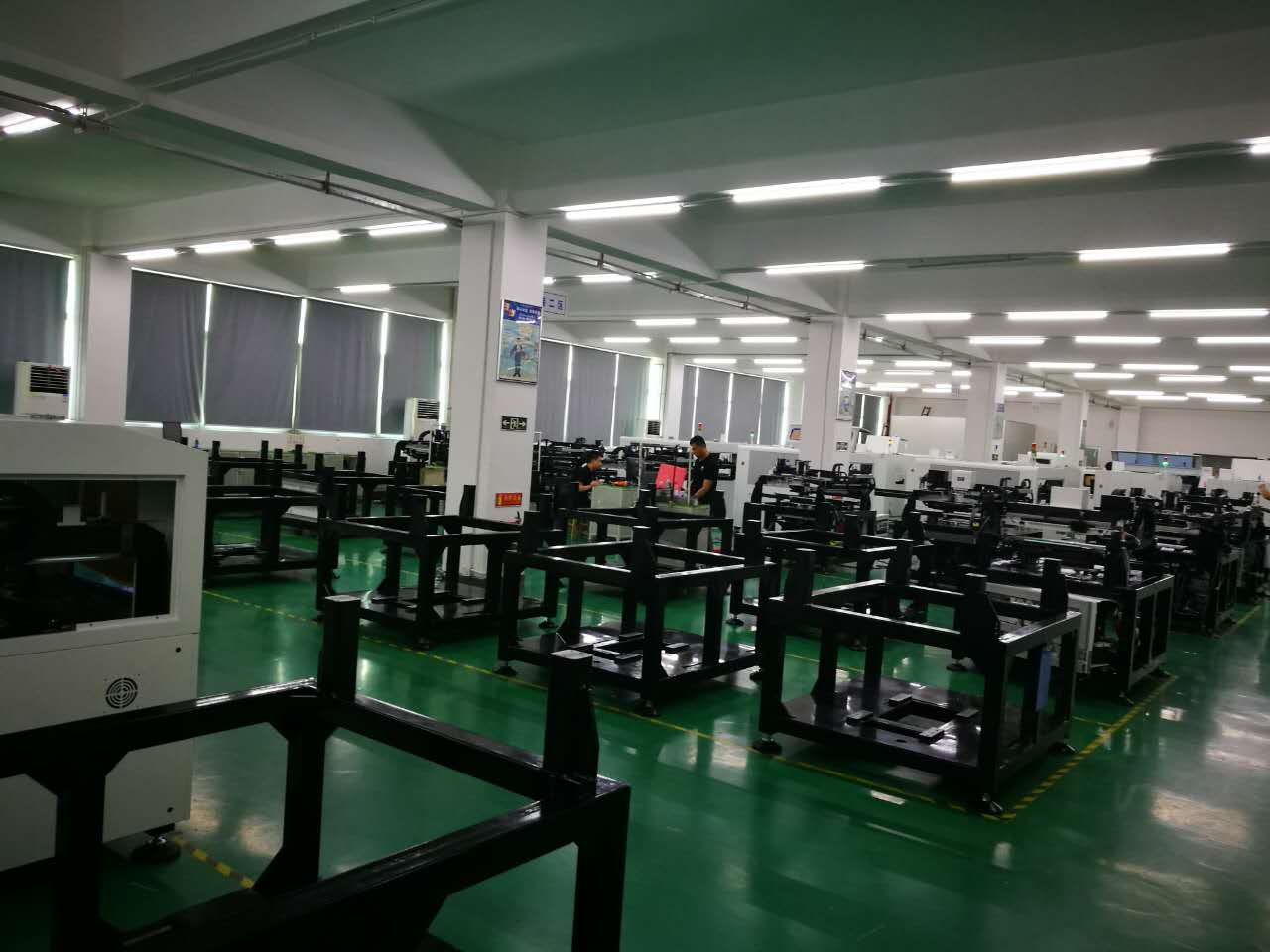

Workshop Photos:

Established in 2004, Chuangwei Electronic Equipment Manufactory is a professional manufacturer and exporter that is concerned with the design ,development and production of pcb depaneling machine, covering punching, routing, laser depaneling & v-groove cutting, hot bar soldering machine & other SMT equipments. We are located in Dongguan City with convenient transportation access.

Products are widely used in Automative electronic industry, Mobile industry, Computor industry, Power supply industry, Connector and cable industry, household appliances industry, LED lighting industry.

Covering an area of over 2000 square meters ,we now have over 45 employees,boast an annual sales figure that exceeds USD4000000 and currently export 45% of our production worldwide.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Beside,we have CE certificate for all equipments.

As a result of our high quality products and outstanding customer service ,we have gained a global sales network reaching Europe and America.

If you interested in any of our products or would like to discuss a custom order,please feel free to contact us ,We are looking forward to forming successful business relationships with new clients around the world in the near future.
