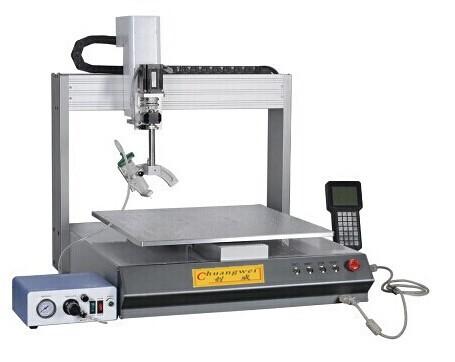

CWDJ Automatic Glue Dispensing Machine Liquid Glue Dispenser
Machine
Model | CWDJ-300 | CWDJ-400 | CWDJ-500 |
Working Area/mm | 300(X)*300(Y)*100(Z) | 400(X)*400(Y)*100(Z) | 500(X)*500(Y)*100(Z) |
Size/mm | 490(L)*528(W)*679(H) | 590(L)*628(W)*679(H) | 690(L)*728(W)*679(H) |
Max load Y/Z | 7kg/3kg |
Max move speed | 400mm/sec(XY)/200mm/sec(Z) |
Drive mode | Stepping motor+ belt+ precise linear guide rail |
XYZ Repeatability | ±0.03mm |
Program capacity | 999 parameter files(65535 points can be saved per file) |
Operation system | LCD panel /handhold programming device |
Motor system | Japan highly precise micro-stepping motor |
Movement pattern | Point to point in XYZ axis, Continuous line, arc |
I/O ports for extension | 4 inputs/4 outputs |
Power supply | AC220V 50/60Hz 0.5kw |
Work condition | Temperature 0-40°C;humidity 20-90% |
Weight | About 35kg | About 45KG | About 55KG |
Automatic Glue Dispensing Machine Main Configurations
Item | Unit | QTY | Remark |
Motor | kit | 3 | Micro stepping motor |
High Precision dispensing valve | pc | 1 | Optional |
Motion Controller | kit | 1 | Developed by Second automatic |
Automatic Dispensing Software | kit | 1 | Second independent R&D |
Precise Dispensing controller | kit | 1 | Optional |
Automatic Glue Dispensing Machine Advantage :
1. LCD teach pendant.
Supporting array,graphic browsing,3D arc,common graphic library
inserting and group editing
MiniSD file memorizer high speed and 2G capacity
Automatic gel prevention to prevent glue curing to jam nozzle.
5.Support Auto CAD,Coral Draw,etc to generate formats (such as NC,
AI, DXF, JPG, BMP, scanner,etc.)
Available Dispensed Material UV glue, instant glue,silica gel, hot
melt adhesive, red glue, silver glue, AB glue, EPOXY resin, COB
black glue, white glue, conductive glue, thermal paste, solder
paste, transparent paint, etc.
Application Area
1.Electrical Products: Electronic parts, integrated circuits,
circuit board solder paste, fixed and dust and moisture protection,
LCD liquid crystal screen, speakers, headphone, audio, LED, optical
lens, SMD transformers, relays.
2.Communication Products:Keypad, mobile phone casing bonding,
radio, telephone, Computers, MP4, electronic toys, chassis bonding,
switches, connectors, plug cable.
